Welding Rollers, welding rotator, Adjustable Welding Rotator

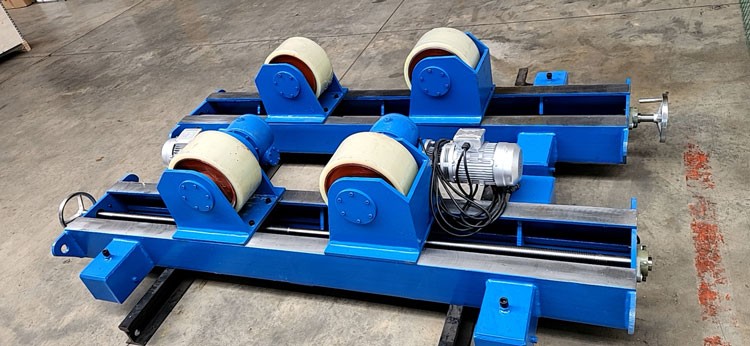

The adjustable welding rotator is mainly used for the welding, polishing, lining and assembly of cylindrical cylinder, and can also be fitted with other tooling for the assembly and welding of the cone and the rotary body with unequal diameter of segments. This product is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing repair and other industries. We can also design and customize all kinds of roller frames according to users’ needs.
Parameters
Model | Load capacity(T) | Roller diameter(mm) | Roller width(mm) | Work piece diameter(mm) |
KT-2 | 2 | 250 | 120 | 200-2000 |
KT-5 | 5 | 300 | 120 | 200-2500 |
KT-10 | 10 | 300 | 170 | 300-3000 |
KT-20 | 20 | 300 | 200 | 300-3500 |
KT-30 | 30 | 300 | 200 | 300-4000 |
KT-40 | 40 | 425 | 220 | 300-4500 |
KT-60 | 60 | 425 | 240 | 600-5000 |
KT-80 | 80 | 425 | 260 | 800-5500 |
KT-100 | 100 | 500 | 280 | 1000-6000 |
Features
1. Adjustable welding rotator adopts double deceleration box, double motor drive, large driving force. High quality variable frequency governor and reliable performance.
2. The center distance adjustment of adjustable roller rack: generally, 2 tons or less can be adjusted by screw rod; more than 5 tons, adjusted by bolt.
3. The design speed of the roller frame is variable frequency and stepless speed regulation.
4. Various deformation modes: row walking, screw adjusting, lifting, tilting, etc.
5. Load capacity: 2T to 200T. Can be customized.
