Mechanical structure design advantages

The main structure of the equipment chassis is welded with square tube frame to provide the main part of the equipment.

1.It has the advantages of simple design structure and good manufacturing process performance. The main considerations are that the project requires outdoor field work, equipment handling, lifting and moving machine level adjustment, and provides simple and convenient operation and good flexibility.

The large-section 200mmx200mm square tube structural heavy frame and it has mechanical advantages such as strong load-bearing load capacity.

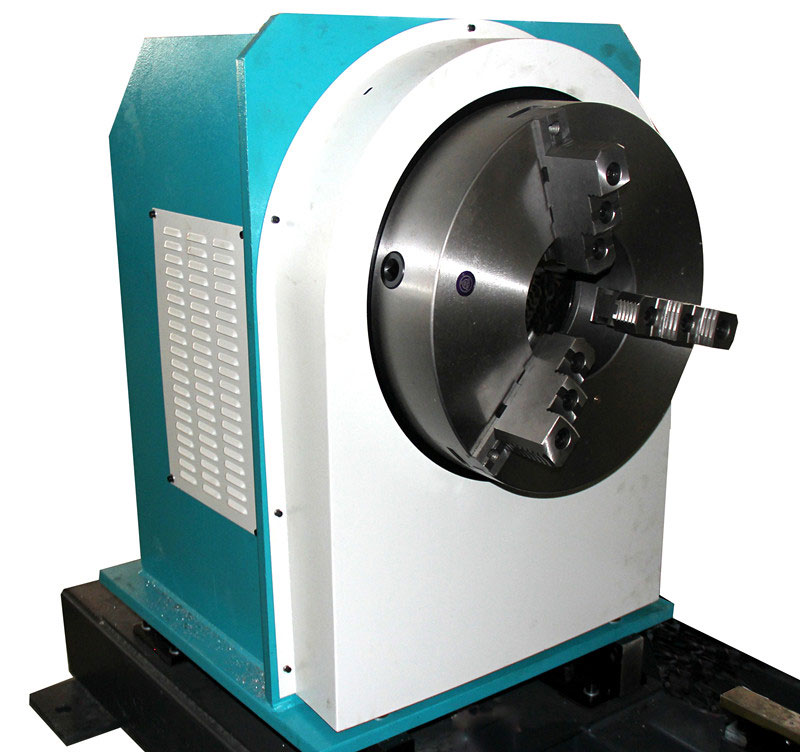

Chunk Box

It adopts steel plate tailor-welded box structure design, compact structure to improve overall rigidity and strength, each component installation surface is processed by CNC machining center at one time, to ensure the rotation running accuracy and machine tool verticality.

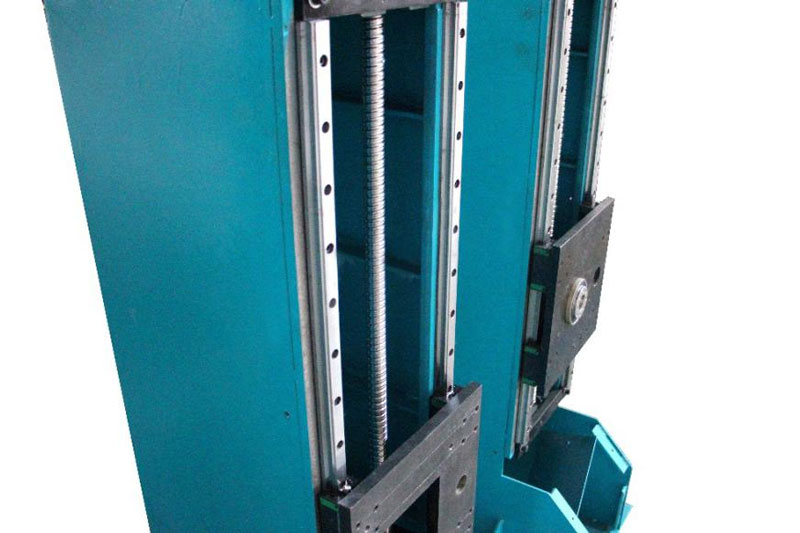

Upright Column

The upright column is mainly composed of plate tailor-welded main body, TBI linear guide rail, screw rod and quadrilateral connecting rod groove device, in which the plate tailor-welded main body structure is precisely processed by CNC machining center to ensure the stability and positioning accuracy of cutting torch.

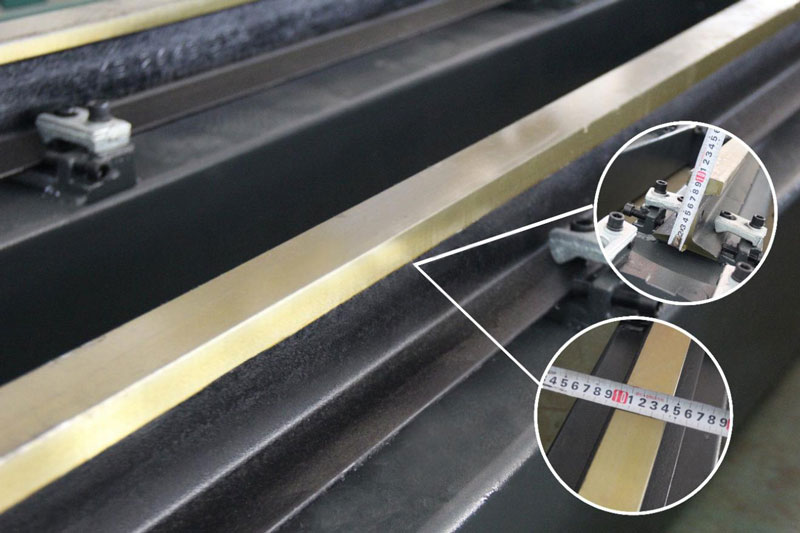

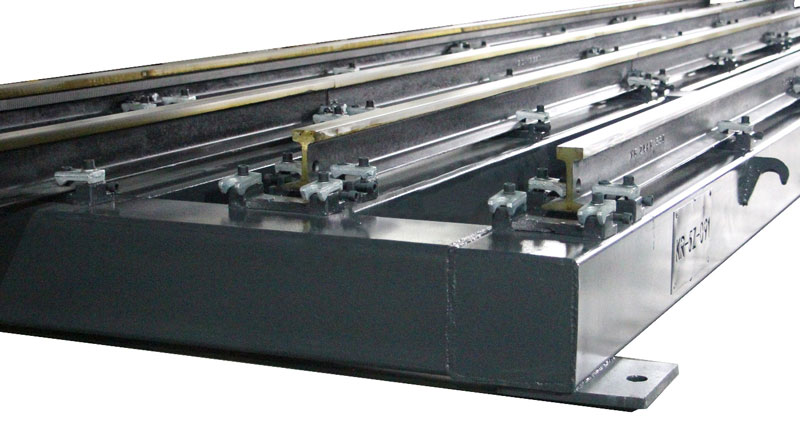

24KG Guide Rail

It is made of 24KG level 55Q ground rail, and the top surface and two side surfaces are precisely processed by a CNC grinder to ensure the horizontality and parallelism of the mobile torch trolley and improve the stability of the whole machine and the accuracy of the cutting axis.

Linear Guides

The important part of the equipment movement guide adopts the TBI linear guide slider,and it is a flange type, which has a higher load capacity and it is more convenient and easy to disassemble. High-speed feed and low-speed feed are easy and stable with good stability, it can withstand forces and moments in all directions.

Advantages of TBI Linear Guide

1.Installation accuracy: This type is self-aligning type, which can easily absorb the accuracy error of parallelism and horizontal between 2 axes,so as to realize high precision and smooth linear movement.

2. Excellent plane walking accuracy: TBI rail adopts a steel ball contact structure with strong radial load capacity, so when the radial load is applied, the displacement in the radial direction is small, and stable walking accuracy can be obtained.

3. Miniaturization and heavy load: Because the type of miniaturization design with low cross-section height has a steel ball contact structure with strong bearing capacity in the radial direction, it is most suitable for horizontal and vertical motion guidance. Improve equipment walking accuracy, load carrying capacity and rigidity, suitable for reciprocating mechanical structure design.

4.Application

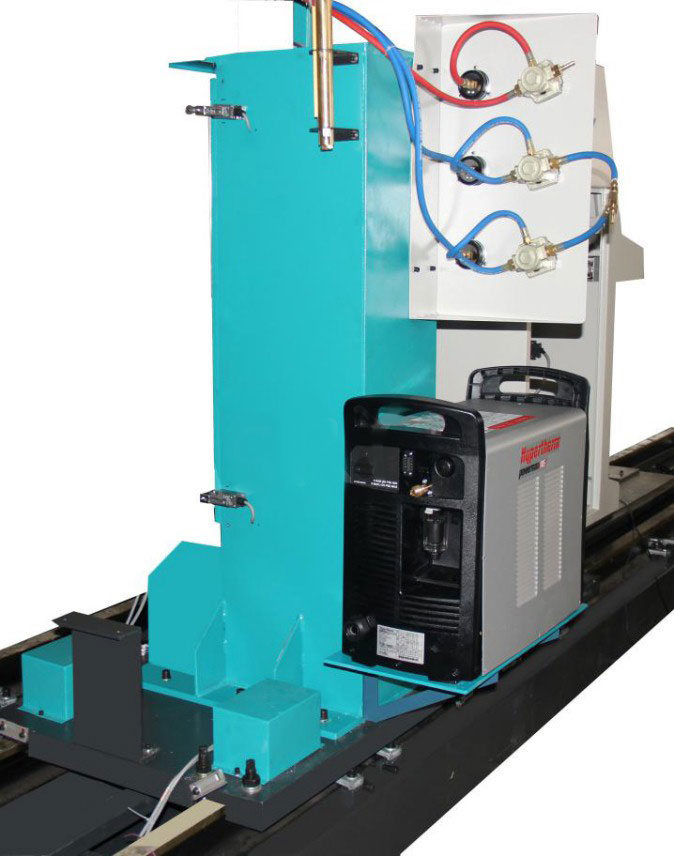

3 Axis Metal Round Pipe Plasma Cutting Machine
