I.Product Description

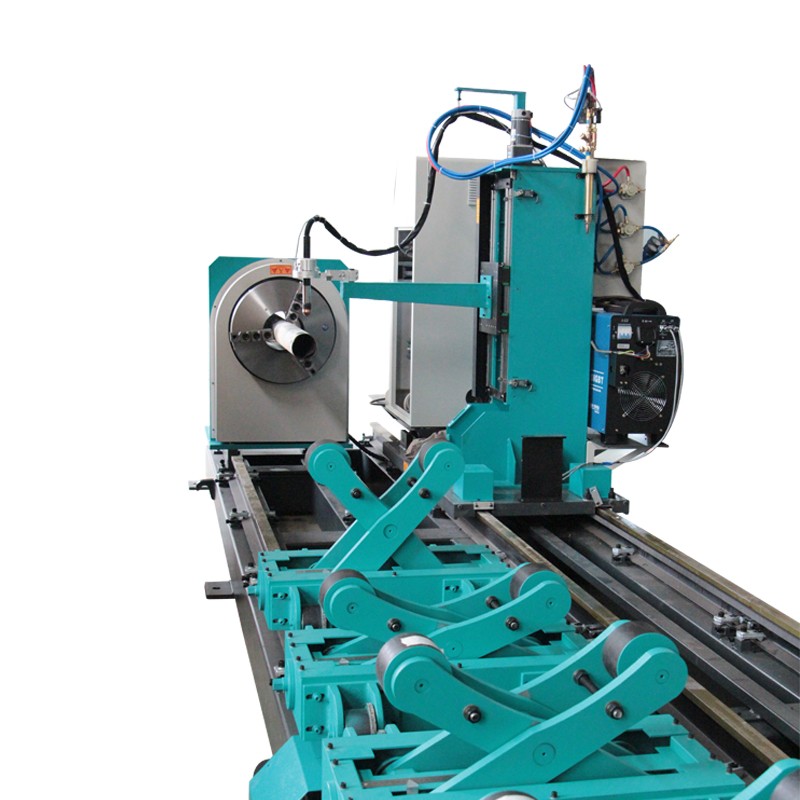

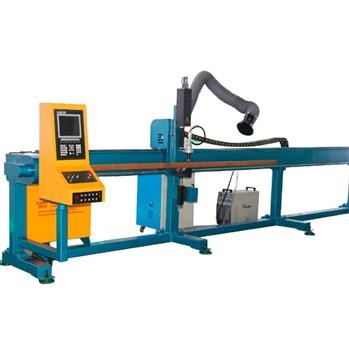

3 Axis Round Metal Pipe Plasma Cutting Machine for round pipe. 3 Axis Round Metal Pipe Plasma Cutting Machine can cut carbon steel, stainless steel and other material. 3 Axis Round Metal Pipe Plasma Cutting Machine is widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

Equipment introduction

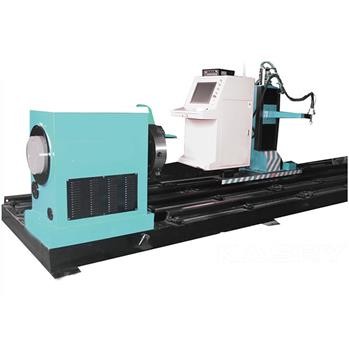

KR-XY3 CNC Pipe Profile Cutting Machine is a device that automatically calculates and cuts off the end of the steel pipe joints; it does not require operator programming, only need to input the matched diameter of pipe, intersection angle parameters, the machine will automatically cut out the pipe intersecting lines and intersecting holes, it does not need manual polishing, widely used in the cutting and processing of pipeline structural parts in shipbuilding, construction, petrochemical, machinery, metallurgy and other industries.

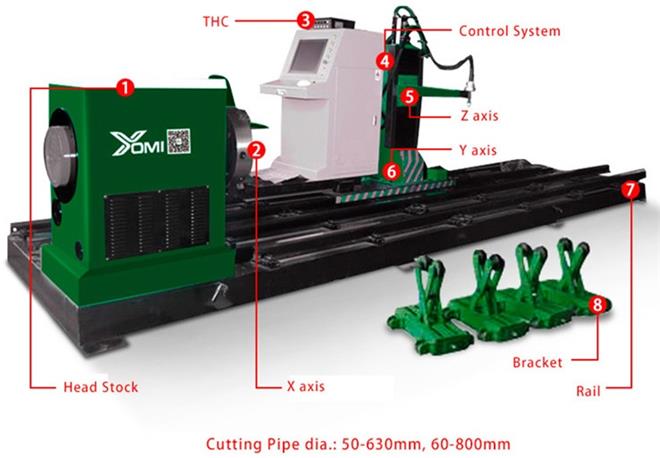

Equipment composition

CNC pipe cutting machine is mainly composed of control system, arm system, drive device, clamping device, support device, guide rail, gas path system, control cabinet, operation table and other parts. Equipped with a plasma cutting system as the main cutting system.

II.The Details Show

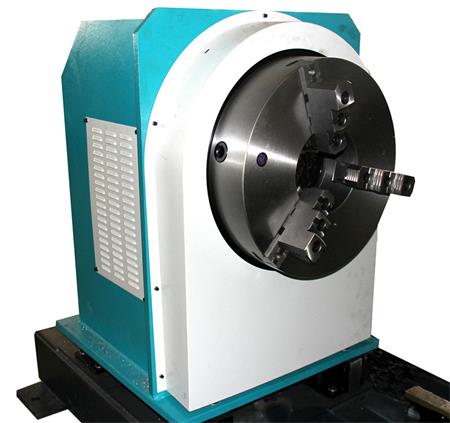

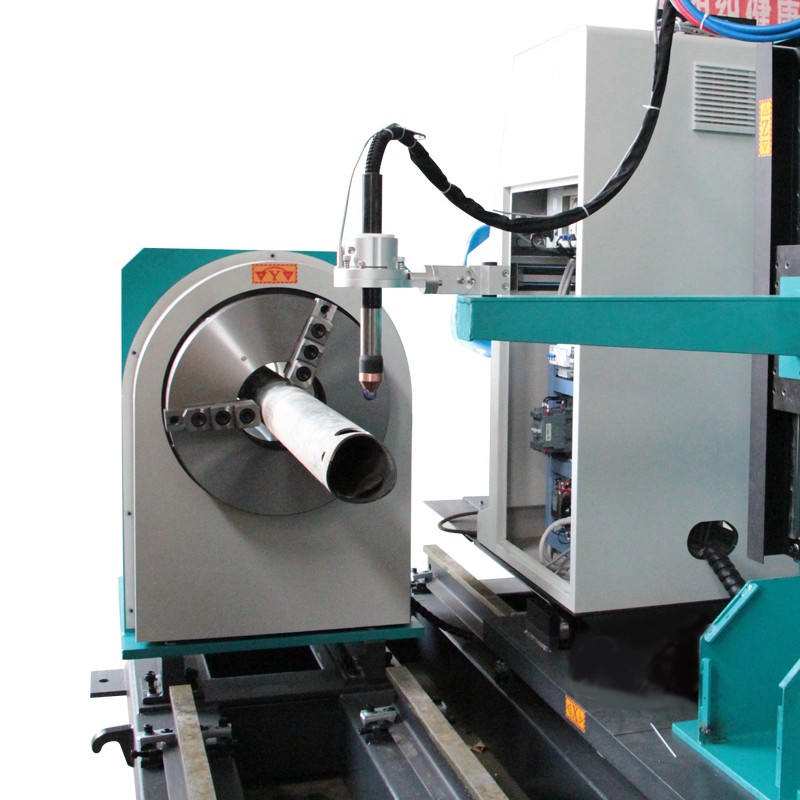

1. Automatic free feeding-Head stock

Tree jaw chuck,360°Free Rotation.Light body, Easy to Operate, Reasonable Price .

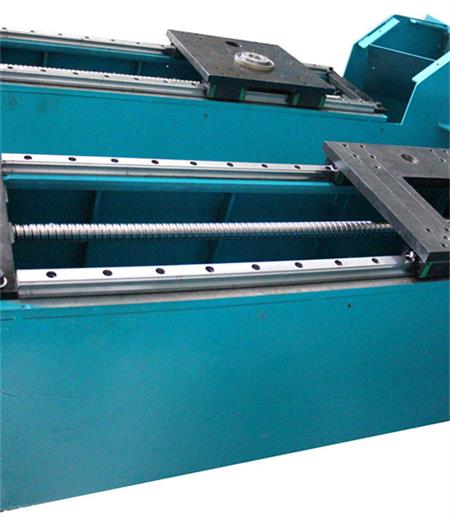

2.Rail-Working Stable and Smoothly

Professional CNC system and cutting software, a large number of standard and special graphical macro library to choose, a 10 inch LCD touch screen, USB interface independent .designed specifically for maintenance and setting, allowing work to stick out a mile.

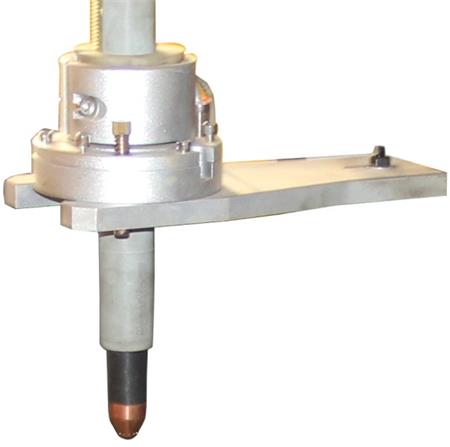

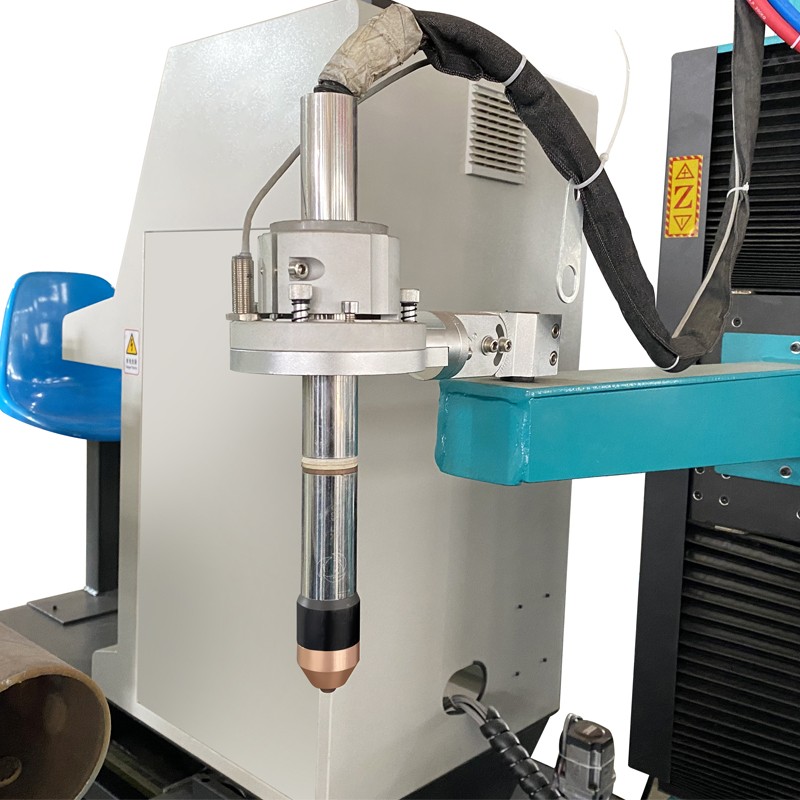

3. Cutting torch

use very good feedback all experienced ,long lifespan.Suitable for simple process cutting, such as orthogonal embouchure, saddle type section and shrimp, etc. Support the slotting compensation.

III.The Product Parameters

IV.Technical Parameters

V.Motion range of host axis

 Worktable (X axis): The worktable is an integral frame structure. Two parallel linear guide rails are installed on the side and bottom of the worktable. Precision racks are installed between the guide rails. The drive system on the moving body drives the gears to rotate. , Realizing longitudinal gear and rack transmission.

 Chuck rotation device (Y axis): The entire transmission system is driven by the servo motor + precision reduction box, and the workpiece is rotated by the chuck in forward and reverse directions.

 Torch base lifting device (Z axis): The DC motor drives the screw and smooth drive through the precision reducer to realize the up and down movement of the torch base. The linear guide mechanism ensures the stability of the moving body during the movement.

 The control system adopts a special system for intersecting line cutting, and the man-machine dialogue is conducted through the system window. Under the "parameter setting" interface, the user can set various parameters according to the processing requirements. The software has set the default parameter values during design. The user can Load by clicking the "Load Default" button; the parameters to be cut are input at once, and the system will automatically generate a cutting program according to the input parameters to realize continuous cutting. It makes the machine operation very simple.

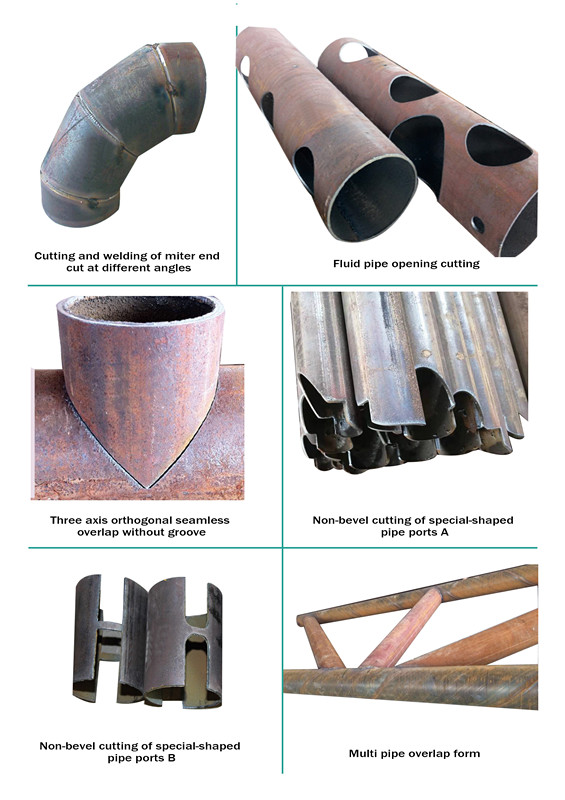

VI.Cutting Content

Maximum bevel angle: ±45°

Cutting minimum cross angle: ±30°

Cutting speed automatic stepless speed regulation;

Continuous cutting settings;

Automatic compensation of pipe ovality error;

Orthogonal main pipe riding type cutting;

Orthogonal main pipe insertion cutting;

Oblique cross main pipe cutting;

Oblique cross main pipe off-center cutting;

Bevel setting for fixed angle and fixed point;

Pipe end vertical and bevel cutting;

Pipe end cutting of Orthogonal and oblique branch pipes end cutting;

Orthogonal and oblique off-center main pipe cutting ;

Orthogonal and oblique off-center branch pipe cutting;

Rectangular cutting on the surface of main pipe;

pipe slot joints ,off-center joints;

Round pipe welding elbow, miter end cutting;

Bevel cutting;

Multi-branch pipes intersecting main pipe surface cutting ;

Multi-branch pipes intersecting branch pipe end cutting;

Marine engineering pipe obliquely cutting at both ends pipes.

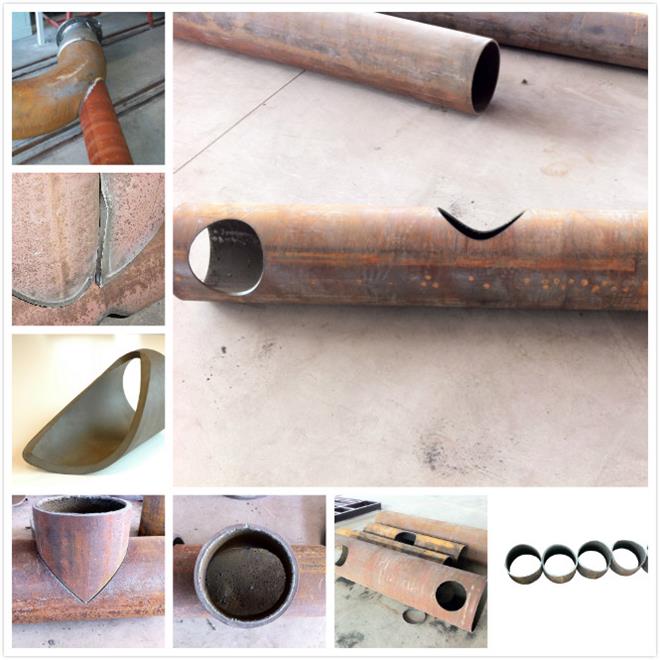

VII.Cutting Sample
