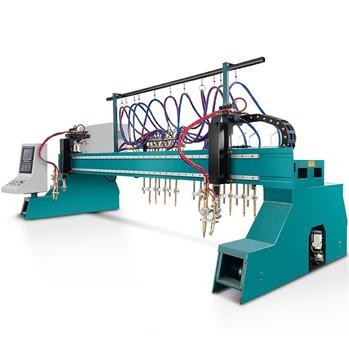

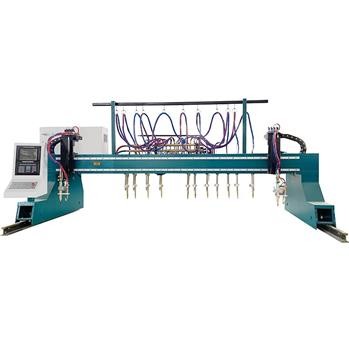

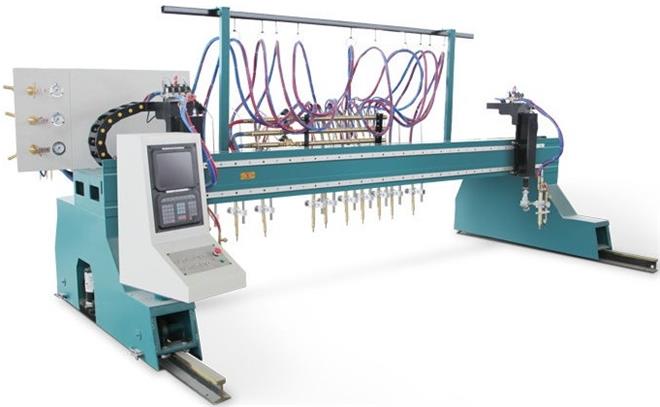

Multi torch straight strip cnc plasma flame cutting machine

Multi torch straight strip cnc plasma flame cutting machine is characterized of stable running and high efficiency, can be widely applied for strips cutting of carbon steel, manganese steel and other materials.

Multi torch straight strip cnc plasma flame cutting machine

Multi torch straight strip cnc plasma flame cutting machine’s frame use gantry structure, bilateral drive to improve cutting quality. Host N Group front torch for longitudinal straight cut back a set of lateral torch for straight cuts, improve cutting efficiency. Multi torch straight strip cnc plasma flame cutting machine can configure torch number, longitudinal and transverse cutting configured according to user needs, can be cut more once to walk one time.

The Details Show

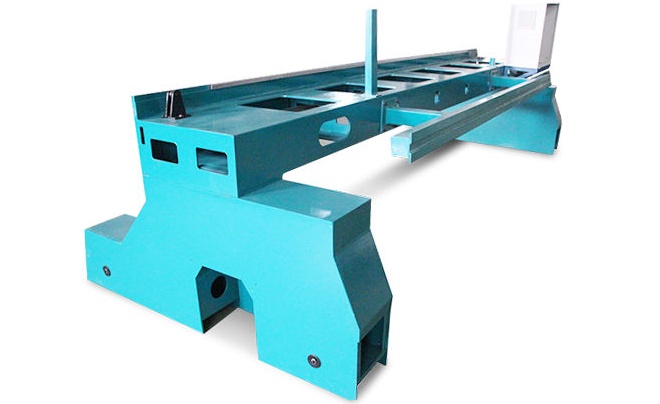

1. Heavy gantry structure and hollow steel plate welded frame

Bilateral drive, beam adopts plate tube welding structure,Facilitate heat dissipation and prevent thermal deformation. The machine body is shot blasted and sprayed with a long service life.

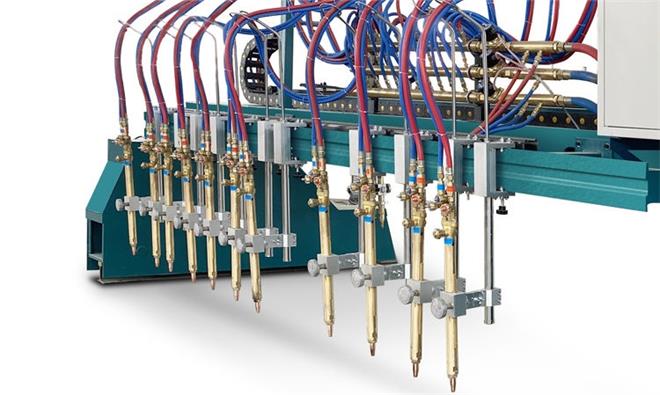

2.Multiple sets of straight cutting torches

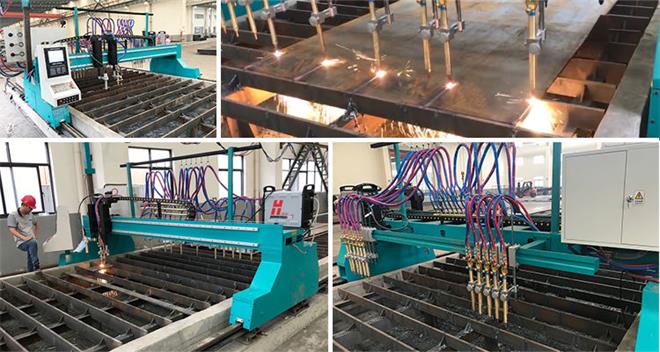

This machine is mainly used in steel structure industry. It can be equipped with multiple sets of straight cutting torches to cut steel plate into structural parts required by steel structure. It has features of fast cutting speed, high efficiency and less deformation.

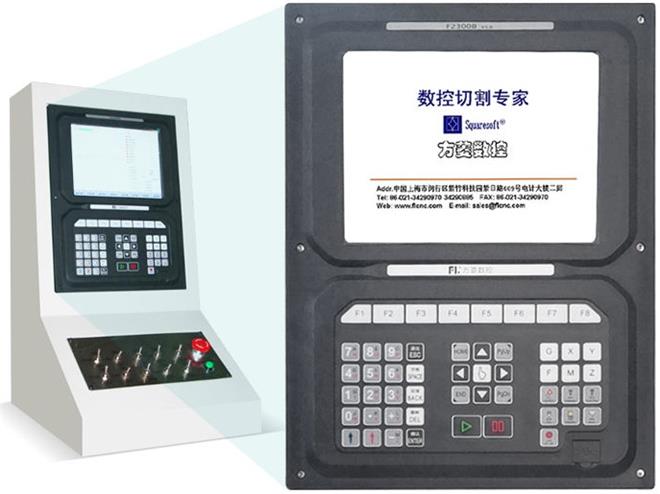

3. Shanghai Fangling 2300B System

10.4 inch LCD screen, high integrated motherboard material, good stability

4.Automatic programming nesting software

Without basic knowledge, customers can easily load DXF graphics into the software. Or use our integrated CAD-system STAR CAMCad to create graphics. Process data will be automatically generated through CNC CUT graphics. The software will also provide the best processing path, and this processing path can be changed at any time as required

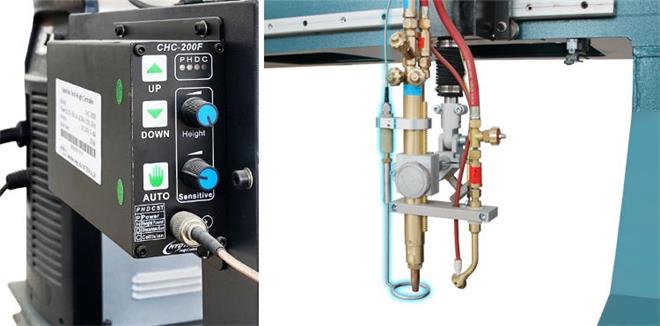

5.Automatic electronic ignition and configurable capacitor height controller

The automatic ignition adopts ignition needle type, which greatly extends the service life, high degree of automation, reduces the labor intensity of workers, improves safety, and the advantages of multiple cutting torches are more prominent.The capacitor height controller ensures that the cutting torch and plate maintain a certain height, the operation is convenient for workers, and the service life of cutting nozzles are prolonged.

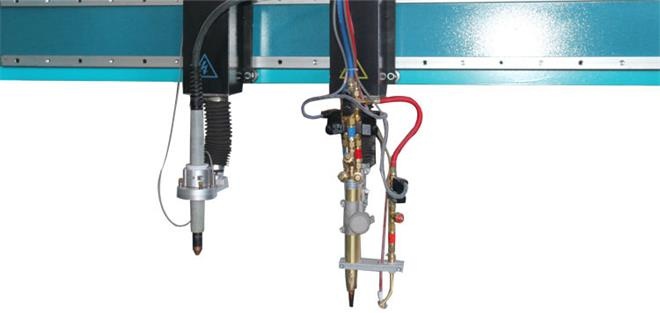

6.Optional plasma and flame cutting method

Choose suitable cutting method according to material and thickness.

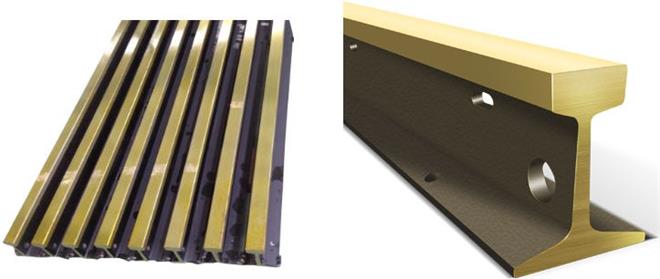

7.24KGS heavy-duty high-strength heat-treated guide rail

High precision, strong load carrying capacity

The Product Parameters

Model	Multi-torches CNC Cutting Machine
Cutting area	3.15*8m（can be customized）
Machine size	4*10m(according to customers’ needs)
Cutting method	Flame/Plasma
Cutting thickness	Flame cutting: 6-150mm Plasma cutting: according to plasma power
flame cutting speed	20-700mm/min
Ignition mode	Automatic ignition
Plasma cutting speed	According to plasma power
Plasma torch anti-collision protection system	Yes
Driving method	Servo or stepper
Software	Starcam
Working condition
Working pressure of compressed gas	＞7Mpa
Required gas flow of plasma	4500L/H
Working environment	Ventilation, no concussion
Power voltage	5KW(not include plasma power)
Types of gas	Acetylene Propane
