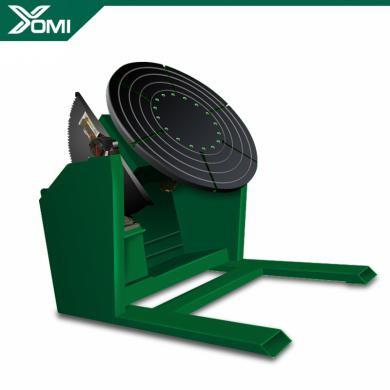

welding positioner

The welding positioner generally consists of a table, a slewing mechanism and a turning mechanism. The workpieces fixed on the table are brought to the required welding and assembly angle by the lifting, turning and turning of the table. The table rotates to variable frequency stepless speed regulation, which can obtain satisfactory welding speed.

The series has various types of positioner such as roll type, head-to-tail rotary type, head-to-tail lifting type, head-to-tail tilting type and double-turn type. It can be combined with welding machine to form automatic welding machine. It can be used as a robot peripheral device to realize welding automation with the robot. At the same time, various special positioners can be designed and customized according to different types of workpieces and process requirements of users.

型号Model		ZHB1	ZHB3	ZHB6	ZHB10	ZHB20	ZHB30	ZHB60	ZHB100	ZHB150	ZHB200
额定承载重量（kg) Rated loading capacity		100	300	600	1000	2000	3000	6000	10000	15000	20000
回转速度（rpm) Rotation speed		0.2-2	0.1-1	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2	0.02-0.2	0.028-0.28
翻转速度(rpm) Tilting speed		手动	-0.3	-0.3	-0.3	-0.3	-0.2	-0.2	-0.2	-0.2	-0.2
工作台直径(mm) worktable dia.		φ300	φ600	φ800	φ1000	φ1200	φ1400	φ1500	φ2000	φ2000	φ2500
最大偏心距(mm) Max. eccentric distance		100	100	100	100	150	150	180	200	150	200
最大重心距(mm) Max. GC distance		200	200	300	300	300	300	210	400	450	630
工作台翻转角度(°) worktable tilting degree		0-90	0-90	0-90	0-120	0-120	0-120	0-120	0-120	0-120	0-120
回转电机功率(KW) Rotation power		0.09	0.18	0.37	0.37	0.75	1.5	2.2	3	4	4
翻转电机功率（KW） Tilting power		手动	0.25	0.37	0.75	1.5	2.2	3	4	7.5	7.5
90°时最大回转直径（mm) Max. rotation dia. at 90°		≤450	≤850	≤1250	≤1700	≤2000	≤2400	≤2800	≤3200	≤3500	≤3500
外形尺寸Dimension	长L	460	1000	1000	1440	1650	2120	2400	2850	3360	3810
	宽W	382	800	820	1060	1200	1400	1500	2000	2230	2500
	高H	400	650	880	1057	1220	1465	1660	1939	2095	2098

Product Details

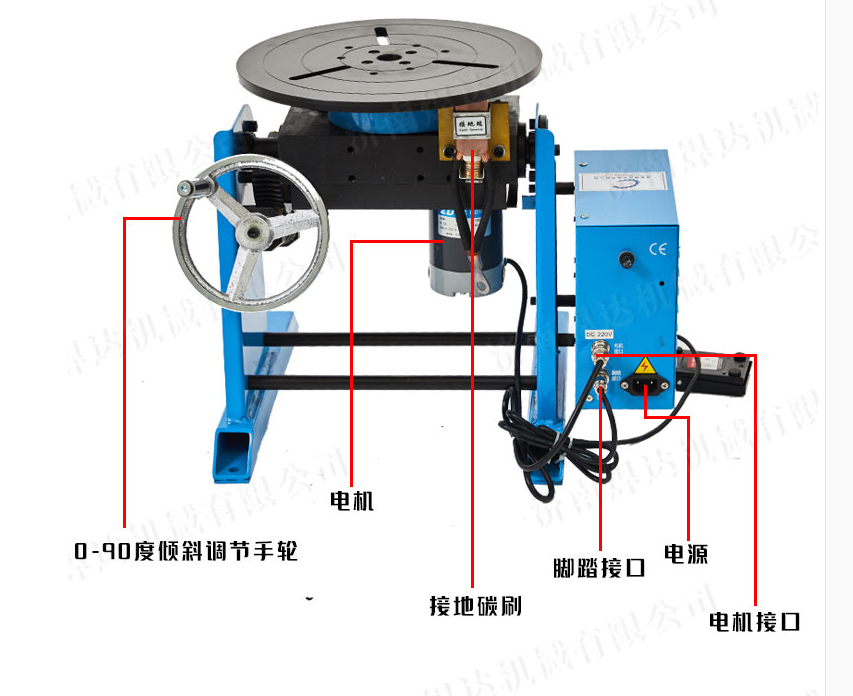

1.The rotation structure of positioner is driven by the DC motor, while stepless speed regulation can be achieved.

2.The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°.

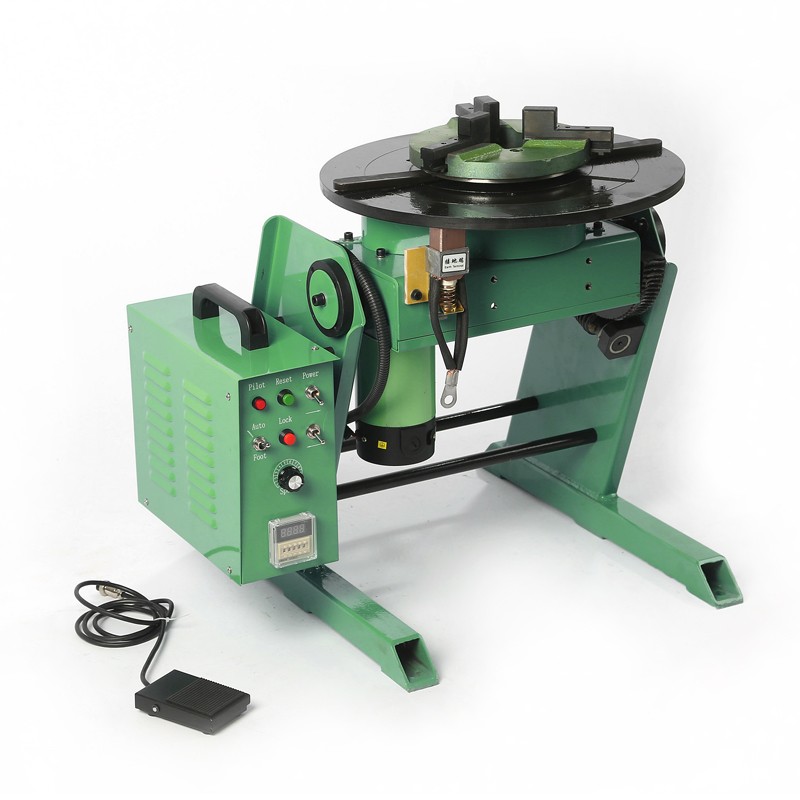

3.The welding chuck and adjustable-welding gun support can be furnished to fix the position of the welding torch.

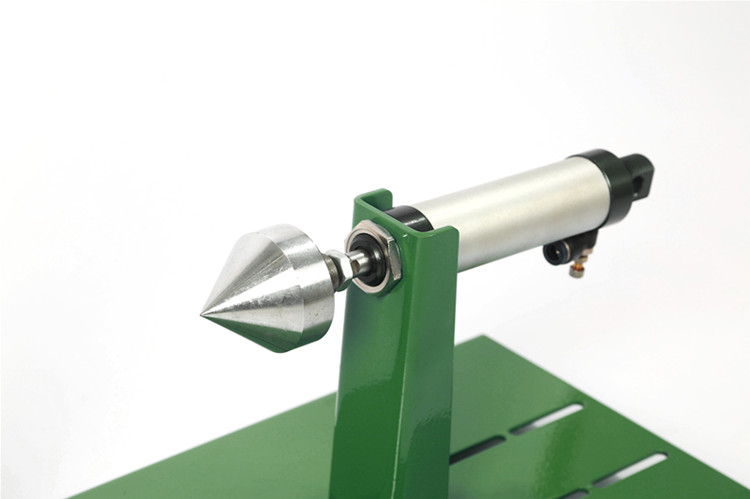

4.The air-powered tail tip can be furnished to achieve the function of self-holding to the workpieces.

Product Paramenters

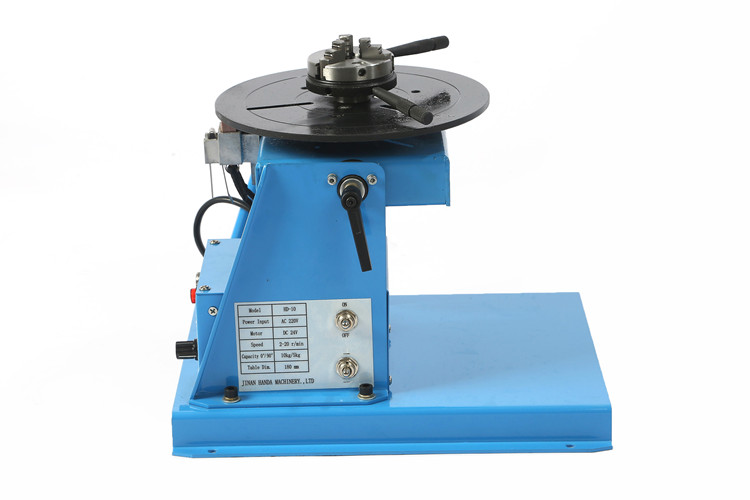

SPECIFICATIONS FOR 10KG WELDING POSITIONER
MODEL	YM-10
Horizontal Capacity Loading	10Kg
Vertical Capacity Loading	5Kg
Rotating Speed	2-16r/min
Tilt Range	0~90°
Table Dimension	180mm
Table Height	232mm
Motor Power	20W
Weight	10kg
Power Input	1PH 220V 50~60Hz
Adapter chuck	KC-65/KC-80
