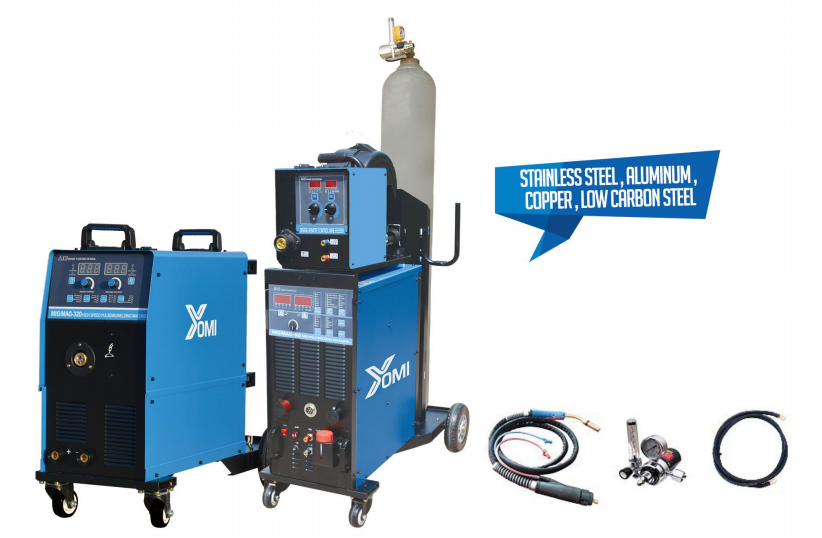

mig welder, co2 welder, inverter welder, MIG/MAG-280/400/500 Integral type
mig welder, co2 welder, inverter welder, MIG/MAG-280/320/400/500 Integral type
1. Digital operation interface, double knob operation can be more intuitive and diversified setting of welding parameters and operation functions.2. Integrating all digital dual CPU control technology with soft-switching IGBT inverter technology to achieve good welding performance.3. By modifying and upgrading control software, we can quickly cope with the special welding procedure requirements of customers.4. Instantaneous arc ignition circuit, no spatter arcing, automatic arc termination program, so that the end of the wire remains sharp, instantaneous arc initiation rate of 100%.5. The arc length can be adjusted freely with the change of the distance between the welding torch and the workpiece so as to adapt to all position welding.6. AC frequency stepless regulation, the higher the frequency, the higher the arc stiffness, so that the control of thin plate and circumferential welding become easier.7. It has completely unified regulation and 2T/4T selection function.8. Four drive wire feeding system suitable for long distance operation and harsh environment, with 5 m welding torch and smooth wire feeding.
9. Suitable for welding stainless steel, copper, carbon steel material.
Model | MIG/MAG280 | MIG/MAG400 | MIG/MAG-500 |
voltage range （V） | Three phase 380±15％ | ||
frequency （HZ) | 50∕60 | ||
rated input power (KVA) | 10.6 | 10.6 | 16.3 |
rated input current (A) | 16.5 | 16.5 | 25.2 |
no load voltage (V) | 66 | 105 | |
working current range (A) | 20-280 | 20-300 | 20-400 |
working voltage range （V） | 15.7-29 | 15.7-29 | 15.7-34 |
wire feeding speed (m/min) | 18 | ||
efficiency (%) | 90 | ||
power factor | 0.89 | ||
rated duty cycle (%) | 60 | ||
weight （kg) | 60 | 65.5 | 67.5 |
size (mm) | 945*513*1040 | ||
