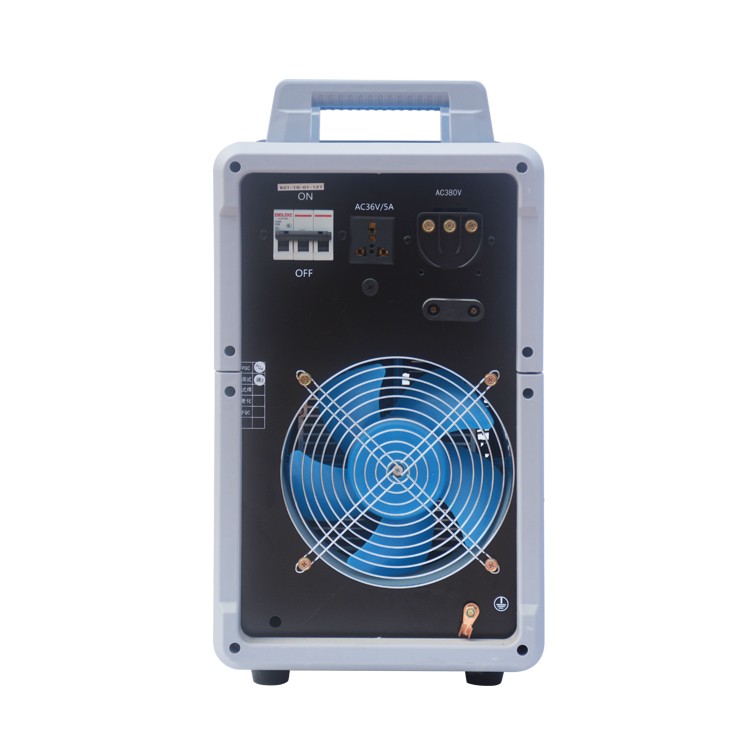

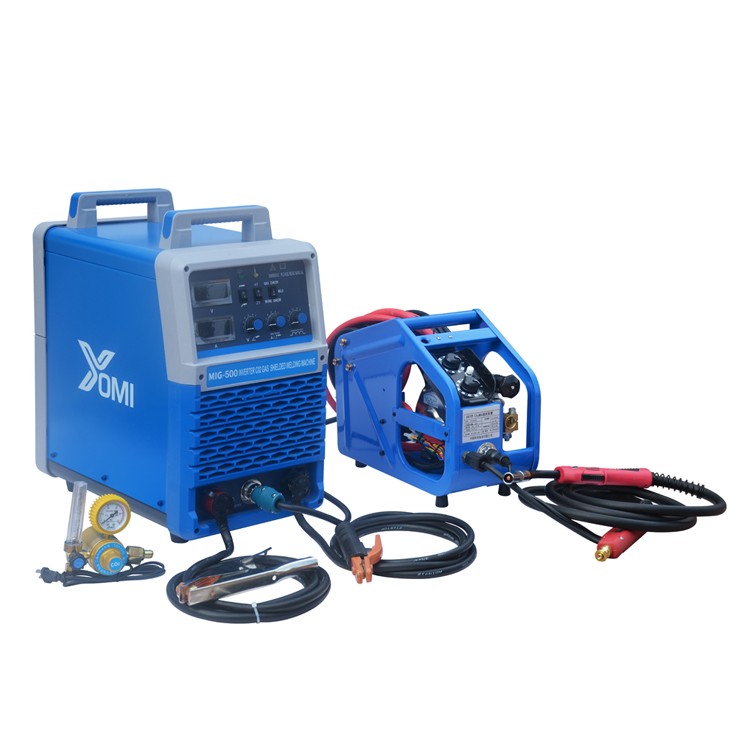

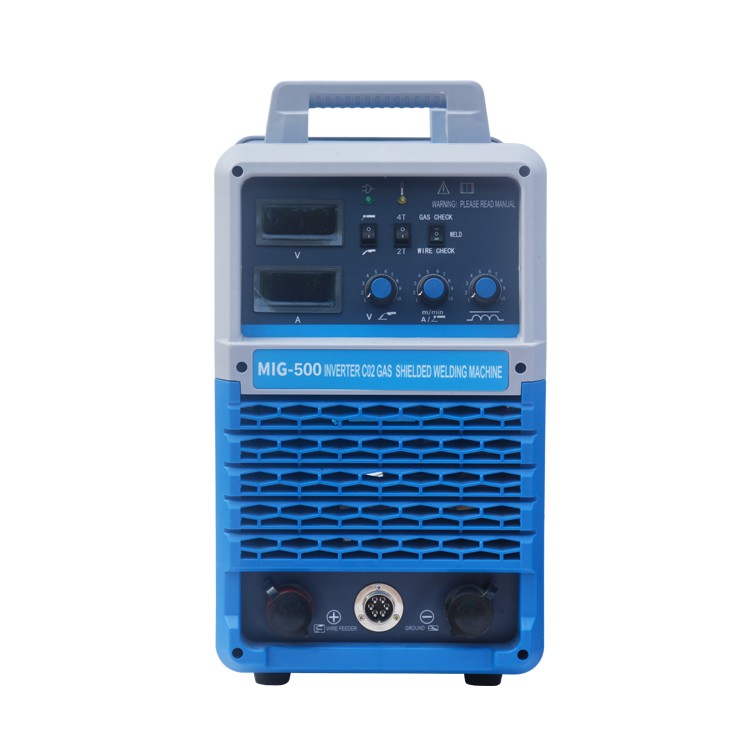

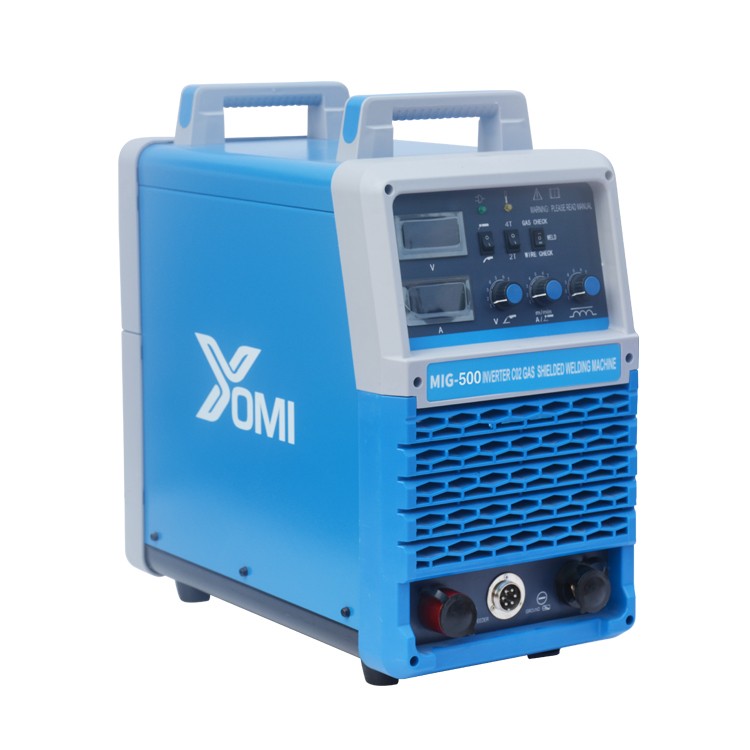

Inverter CO2 Gas Shielded Welding Machine MIG-500D
mig welder, co2 welder, inverter welder, MIG-500D
1.Soft switching IGBT full bridge inverter technology, double closed loop current mode control (UC3846).
2.Passive power factor correction technology, high power factor, input voltage range 320v-450v
3.Droplet Over-waveform Control Technology (Electronic Inductance), Freely Adjusted Arc State, Suitable for Various Welding Requirements
4.Main transformer transformer adopts super microcrystalline iron core with inverter frequency as high as 20KH
5.By using arc ignition to remove ball function, slow wire feeding and arc starting, high success rate of arc striking, less spatter and fast arc starting speed are achieved.
6.By using high power wire feeding system power supply, high wire feeding resistance and super long cable can also provide stable wire feeding.
7.It has self lock / non self lock selection function to facilitate long welding operation.
8.Split cable feeder can be extended to 50m, suitable for wide range movement.
9.With overcurrent and overheating protection function, all digital current and voltage display.
10.Three use: MIG, MMA, and gouging.
