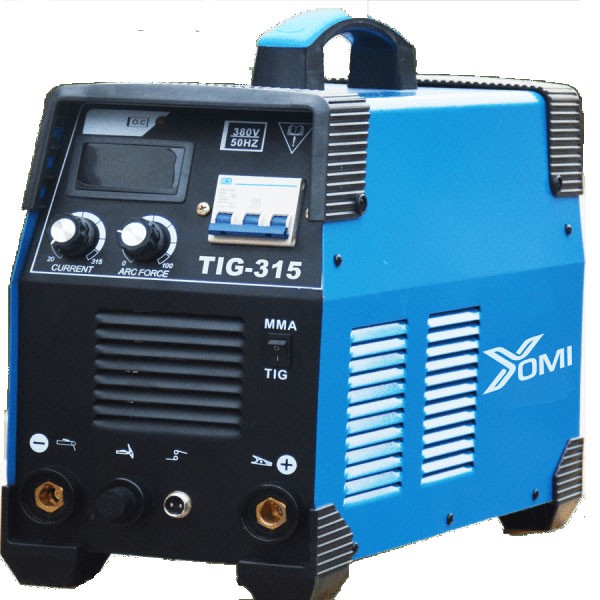

TIG welder, argon arc welder, argon welding, TIG-200/250/315 AC DC

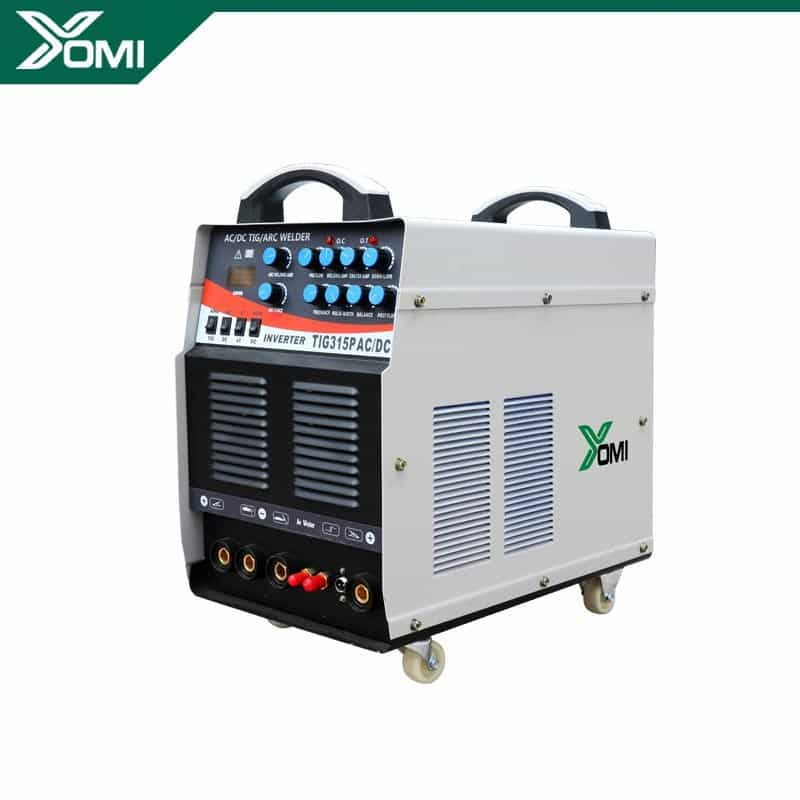

1. Main models are TIG 200AC/DC, TIG250AC/DC, TIG200P AC/DC, TIG250P AC/DC and TIG315P AC/DC.
2. DC function can be used to weld stainless steel, alloyed steel, carbon steel, copper and other color metals.
3. AC function can be used to weld aluminum and aluminum alloy materials, such as welding of scooters, bicycles.
4. The rectifier adopts the most advanced inverter technology.
5. Inverter gas-shielded welding power source utilizes high-power component MOSFET to transfer 50/60HZ frequency up to 100KHZ, then reduce the voltage and commutate, and output high-power voltage via PWM technology. Because of the great reduce of the main transformer’s weight and volume; the efficiency increases by 30%. The appearance of inverter welding equipment is considered to be a revolution for welding industry.
6. Adopting our company’s exclusive HF inverter technology. Compared with traditional machine, it is compact in volume, light in weight, effective in transfer, power-saving; compared with imported machine, it is low in price, strong in power net adaptability.
7. It adopts twice inverter technology, has characteristics of pure square wave output, good arc force, wide cleaning range and continuous arc with small current, which guarantee excellent welding result.
8. AC/DC series are also with pedal current adjustment device (except TIG200AC/DC). With that welder can free their hands to adjust current by foot; And at the beginning of welding and at the moment of adding wire, it can increase current to heat quickly; At the end of welding it can decrease current that is good for welding lines shape.
Model Parameters | TIG200 AC/DC | TIG250 AC/DC | TIG200P AC/DC | TIG250P AC/DC | TIG315P AC/DC |
Power Vol.（V） | 1phase AC220±15% | 1phase AC220±15% | 1phase AC220±15% | 1phase AC220±15% | 3phase AC380±15% |
Frequency（HZ） | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated input current（A） | 28 | 39 | 32/28 | 34/39 | 12/13.6 |
Output current （A） | 20-200 | 10-250 | ARC:20-160 TIG:20-200 | ARC:20-165 TIG:20-250 | ARC:20-220 TIG:20-315 |
No load Vol. (V) | 56 | 56 | 56 | 56 | 60 |
Output Vol. (V) | 18 | 20 | 26.4/18 | 26.6/20 | 28.8/22.6 |
Pre-flow（S） | 0-2 | 0-2 | -- | -- | -- |
Pulse duty（%） | 20-80 | 20-80 | 20-80 | 20-80 | 20-80 |
Descending time（S） | 0-5 | 0-5 | -- | -- | -- |
Post gas（S） | 2-10 | 2-10 | 1-10 | 1-10 | 1-10 |
Control | No | Yes | Yes | Yes | Yes |
Arc initiation way | HF | HF | HF | HF | HF |
Efficiency（%） | 80 | 80 | 80 | 80 | 85 |
Duty cycle（%） | 60 | 60 | 60 | 60 | 60 |
Power factor | 0.73 | 0.73 | 0.73 | 0.73 | 0.93 |
Insulation grade | F | F | F | F | F |
Housing shielding grade | IP21S | IP21S | IP21S | IP21S | IP21S |
Weight （kg） | 20 | 22 | 20 | 22 | 34 |
Dimension (mm) | 498×328×302 | 498×328×365 | 498×328×302 | 498×328×302 | 560×364×372 |
Max. welding thickness | 10 | 12 | 10 | 12 | 15 |

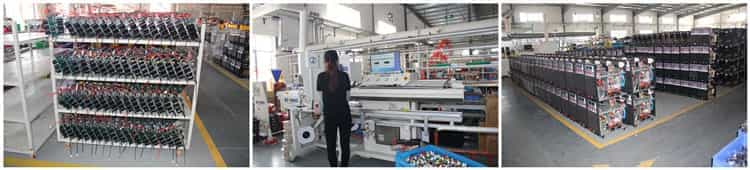

Workshop
2. Q: How can I visit your factory?
3. Q: Could you print our company LOGO on the nameplate and package?
4.Q:What is the Minimum Order Quantity?
5.Q:Is sample available and the sample fee refundable?
6.Q:What is the available shipping way?
Bulk order would be sea/ air shipping.
2.Deliver time: If there have stock, we will deliver the goods 3-7 work days after received payment. Otherwise, we will delivery it 25-30 work days after received payment.
4.Guarantee and after sales service:
b. 1%-2% Free spare parts will be provided for repair.
d. 24 hours support by e-mail.
<p font-size:14px;background-color:#ffffff;text-align:justify;"="" style="box-sizing: border-box;margin-top: 0px;margin-bottom: 10px;color: rgb(51, 51, 51);font-family: Arial, 'microsoft yahei', Helvetica, sans-serif;font-size: 14px;white-space: normal;background-color: rgb(255, 255, 255);text-align: justify">e. For Large Order, Engineers can go to your country for on-site maintenance instructions.
