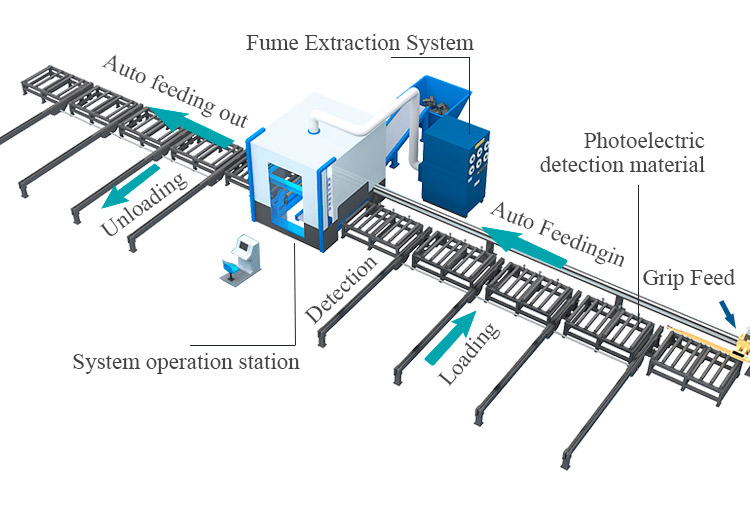

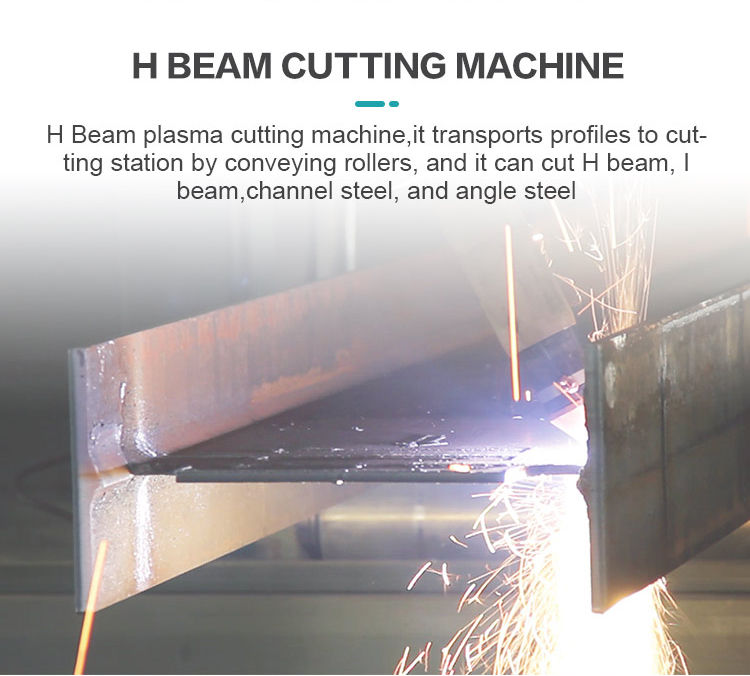

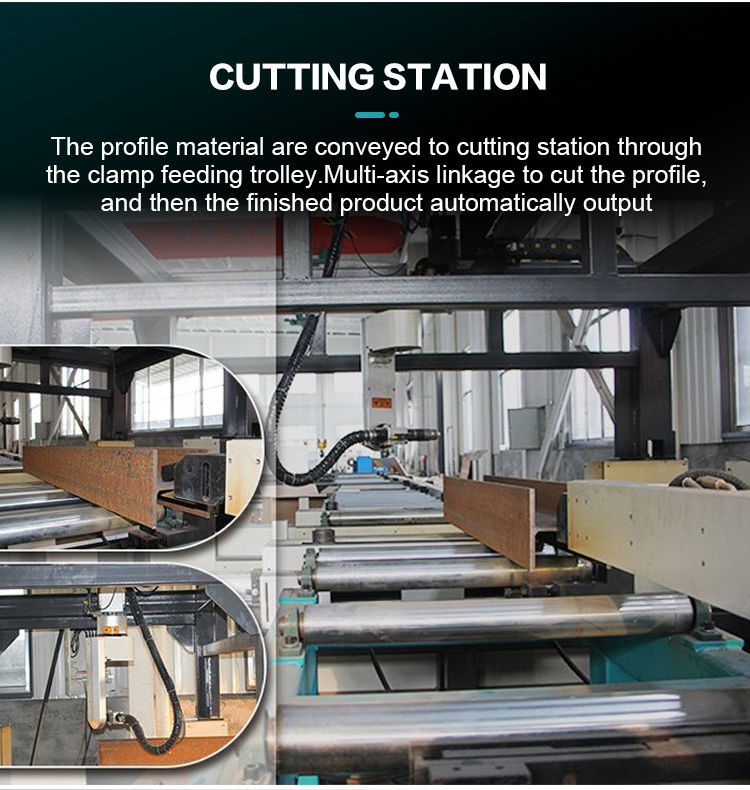

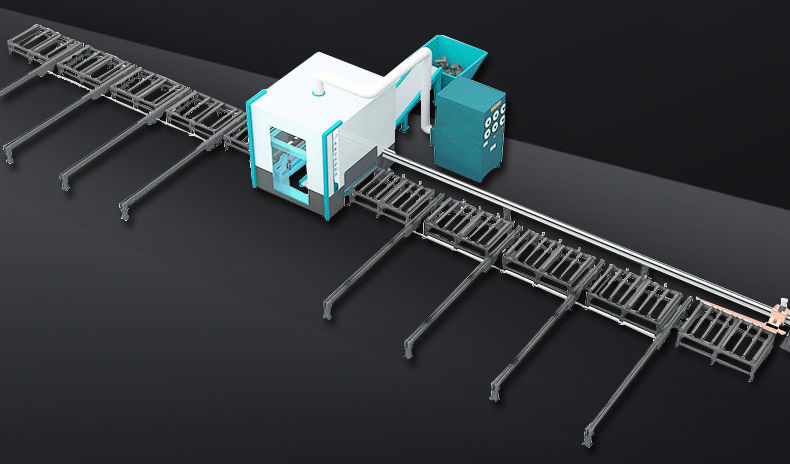

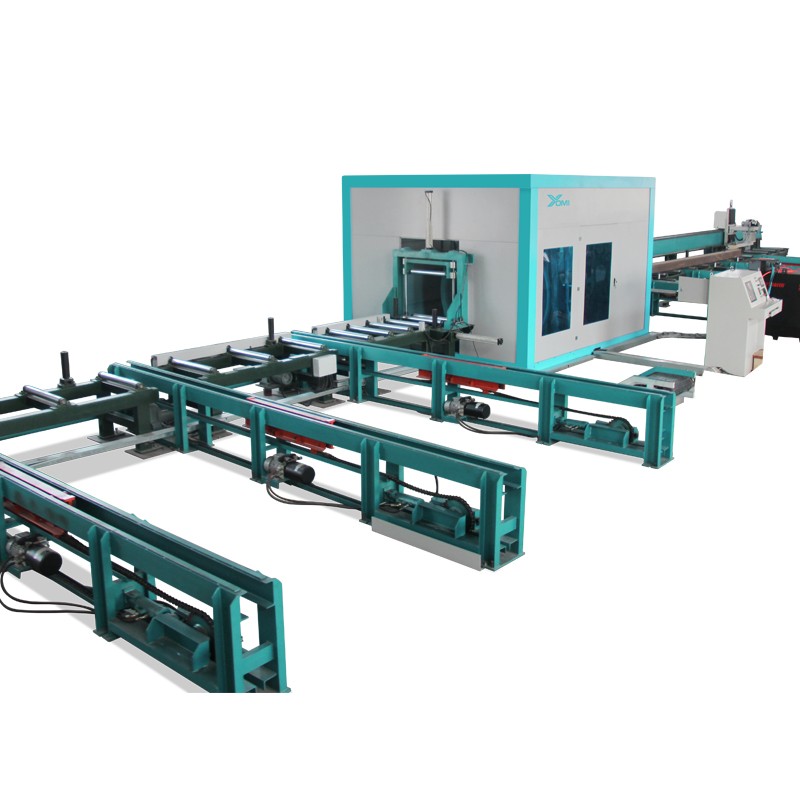

H Beam plasma coping machine,it transports profiles to cutting station by conveying rollers, and it can cut H beam, I beam, channel steel, and angle steel to realize thermal coping processing for profile intersecting.
H Beam plasma coping machine,it transports profiles to cutting station by conveying rollers, and it can cut H beam, I beam, channel steel, and angle steel to realize thermal coping processing for profile intersecting.
The Details Show
Model | H beam coping machine |
H beam | 100-800mm |
Effective coping length | 12000mm |
Coping length deviation | ±1.5mm |
Bevel coping | ±45° |

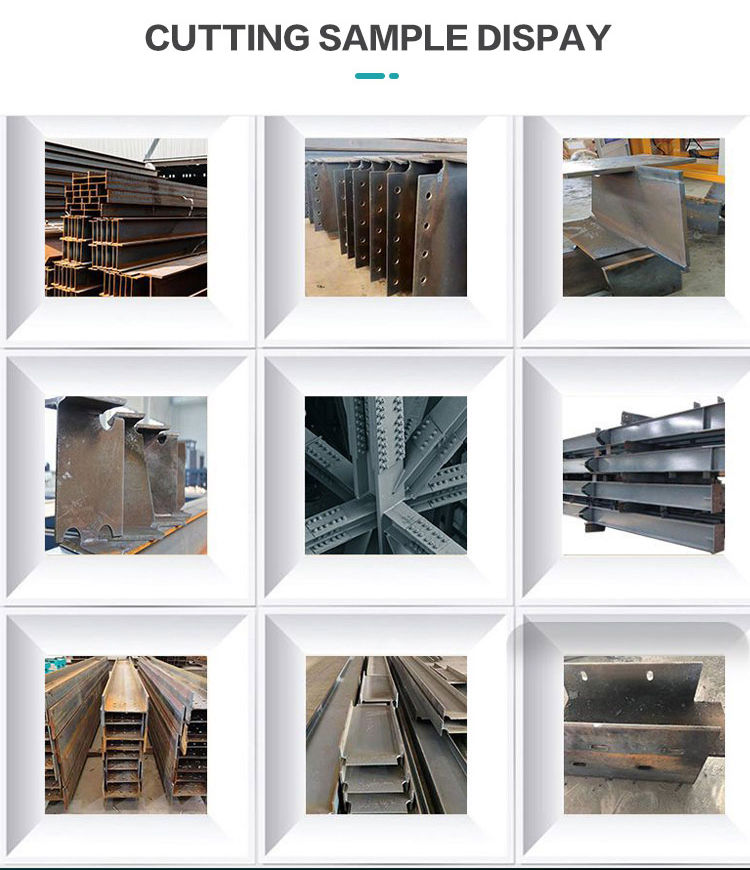

Workpiece coping process | Cut any shape and cut hole in flange side and web side |
Coping method | Plasma and flame |
Plasma power | Hypertherm |
Flame Coping thickness | 6-60mm |
Computer | Taiwan Advantech Industrial Computer |
Driving motor | Servo motor |

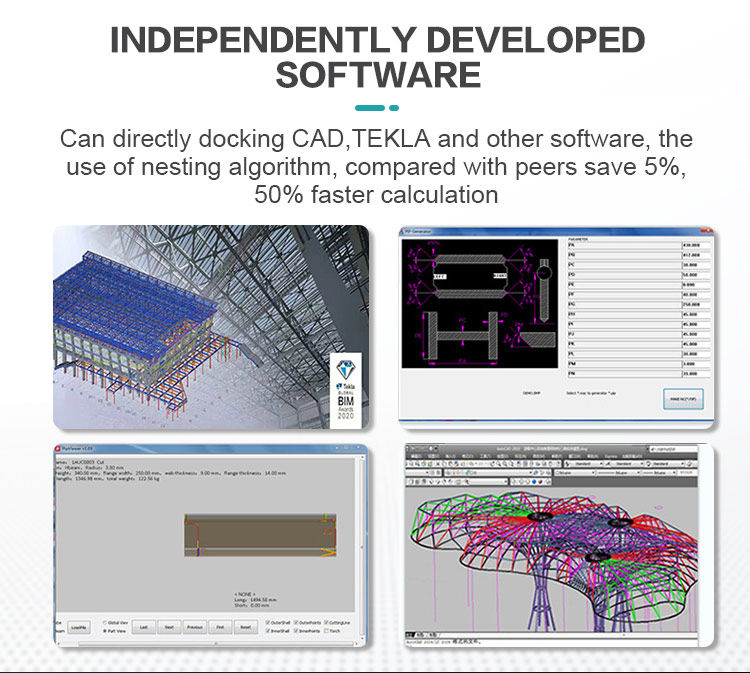

Software | Auto profile |
Load | 5t |
Weight and size | |
Size | Can be customized according to your factory space |
Shipping | Two 40ft containers |
Weight | 17T |
Working condition | |
Working pressure of compressed gas | Above 7mpa |
Require gas flow of plasma | 4500L/H |
Working environment | Ventilation , no concussion |
The acceptable temperature around | -20℃ -50℃ |
Voltage | Machine :220/380V ,50/60HZ |
Power wattage | 5KW |
Types of gas | Plasma :Air , Flame :Oxygen+Acetylene /propane |

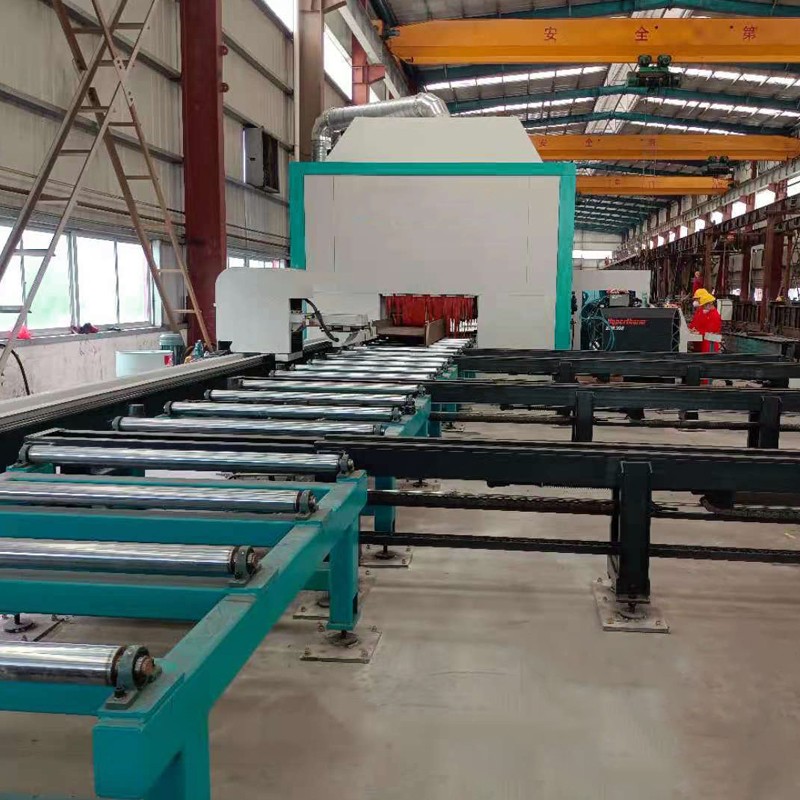

Customer Case
