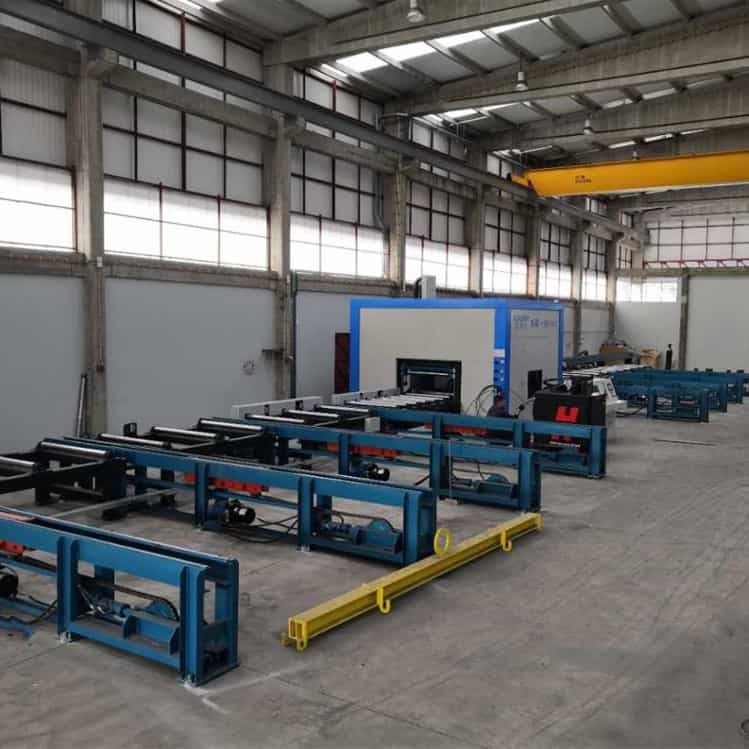

H Beam plasma cutting machine,it transports profiles to cutting station by conveying rollers, and it can cut H beam, I beam, channel steel, and angle steel to realize thermal cutting processing for profile intersecting.

The feeding mechanism tightens the chain through hydraulic cylinder, so that the pallet is raised.

The profiles are placed on feeding in rollers, and they are supported by rollers.

The feeding trolley station is mainly composed of linear guide, gear, rack, finishing beams and trolley chassis realizes feeding positioning and clamp height positioning through servo motor, and it is equipped with photoelectric sensor to detect the logic of profile material connection system,

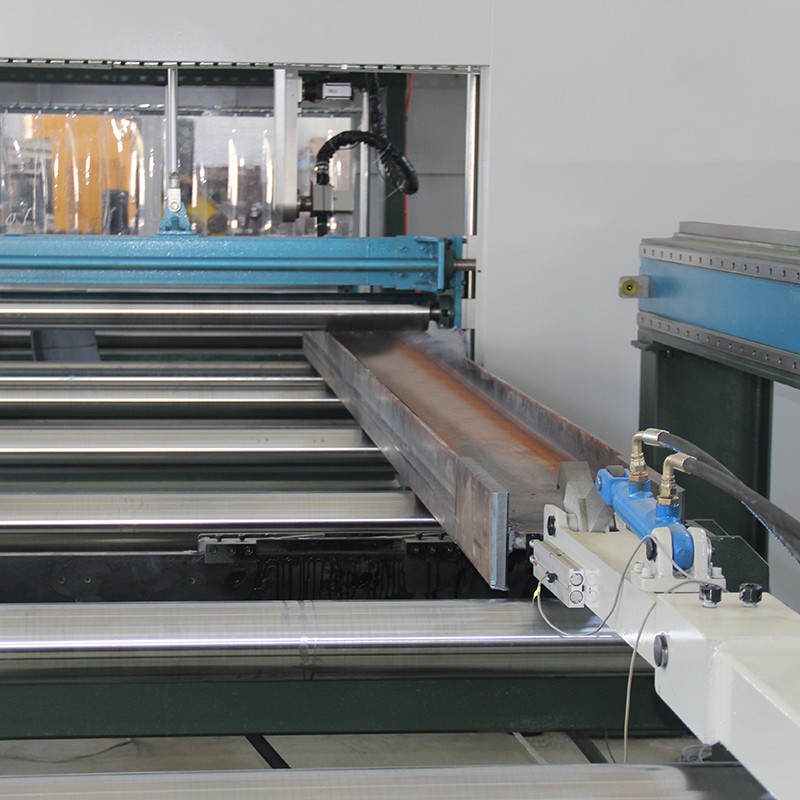

It is mainly composed of lower jaw and upper jaw, and it moves forward and backward through the cylinder to drive the middle plug plate to slide, realizing the function of automatic clamping and loosening of beam profiles .

The profile material are conveyed to cutting station through the clamp feeding trolley.Profile is feeding by the clamp feeding trolley, and the photoelectric detection switch of discharge port is triggered, and gas cylinder press the profile to prevent deformation and minor deformation during thermal cutting process, and then automatically press profiles to ensure stable output from cutting station.

Complex cutting process, Direct drawing any shapes, Direct cut as drawings,no teaching tracks.
