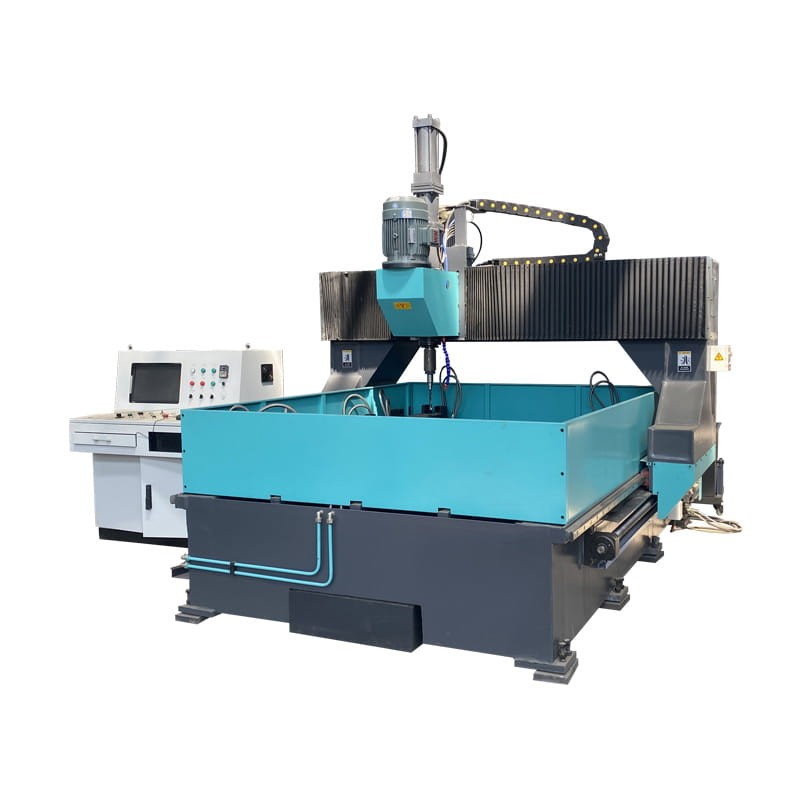

CNC Plate Drilling Machine is mainly used for drilling and milling of connecting plates and floor board in steel structures, iron towers, bridges, mechanical processing and other industries; CNC Plate Drilling Machine can drill through holes,blind holes,step holes,holes chamfering,and workpice automatic clamping.

Driven by a precision servo spindle motor, the speed can be adjusted steplessly according to the needs. The spindle is equipped with a pneumatic tool cylinder for clamping drill taps or milling cutters through a BT40 chuck to realize rapid tool change.

The 5.5KW servo spindle motor power is matched with the BT40 high-precision spindle speed, and the perfect combination of precision, greatly improves the drilling efficiency.

High temperature annealing before processing, secondary annealing for semi-finishing to remove stress, and then finishing, can ensure the stability of the machine tool accuracy.

It uses a 10.4-inch screen, the point drive is driven by a high-precision absolute value series servo motor, and it is equipped with all high-speed handwheels, which is easy to operate.

The precision design is easy to install, and there are rigidity and heavy load capacity all around, with high precision and stable operation.

There is a cooling pump installed on the side, the outlet of which is connected with the central water filter system with a hose, the coolant flows into the chip conveyor, the chip conveyor lift pump pumps the coolant into the central water filter system, and the high-pressure cooling pump then filters the coolant Circulating supply for spindle drilling cooling.
